Ignition Sources

Ignition Sources in Hazardous Areas

ignition-sources-in-ex-1

The officially recognized IGNITION SOURCES or ‘FIRE STARTERS ‘ are given in European Standard EN  1127-1 (2011).

Their number is 13 !

   listed as follows:-


1)     Hot surfaces

Important parameters to be considered are :-

hot-surface-2

hot-surface-1


2)     Flames and hot gases (including hot particles)

This is one of the most effective source of ignition.

Presence of even a small flame (say a burning candle ) clearly indicates that a combustion reaction is in process at temperatures of around 900 Degrees Centigrade  with production of hot gases .

“A FLAME AND A HAZARDOUS AREA ARE AT-ONCE EXPLODED “

Remember the old saying from the ‘The Fables of Experts’


3)     Mechanically generated sparks

Mechanism of Ignition

As a result of friction, impact or abrasion processes such as grinding, particles can become

separated from solid materials and become hot owing to the energy used in the separation process. If these particles consist of oxidize-able substances, for example iron or steel, they can undergo an oxidation process, thus reaching even higher temperatures. These particles (sparks) can ignite combustible gases and vapours and certain dust/air-mixtures (especially metal dust/air mixtures).

In deposited dust, smouldering can be caused by the sparks and this can be a source of ignition for an explosive atmosphere.  (EN 1127- 1: )

grinder1


4)     Power Supplies  (Electrical Apparatus)

yes

There is no doubt about this fact that the most notorious, the most dangerous & the most effective FIRE STARTER is an ELECTRICAL APPARATUS.

let us consider one of the most simplest of all the Electrical Apparatus.

An Electrical Switch

simple-switch

EVERY “ON”-“OFF” operation is an IGNITION SOURCE

switch-operation

Electrical Inertia is due to the resultant Impedance of the circuit


5)     Stray electrical currents , cathodic corrosion protection

Stray Currents in an electrical network are  like STRAY Animals in your neighborhood……….. lost, unwanted and a nuisance .  Useful , perhaps……… desired, maybe , but not in this form.

ex-stray-cats

Stray currents can Ignite an explosive area through the following mechanism:

  1. Overheating its own path
  2. Generating a potential difference at the point of breakage and initiating an arc across the gap

6)    Static Electricity

See:     8.2 ELECTROSTATIC & Ex


7)     Lightning

See : IEC 62305-Protection Against Lightning


8)     Electromagnetic waves , radio frequency (RF)  frequency-range-2

Electromagnetic waves are emitted by all systems that generate and use radio-frequency electrical energy (radio-frequency systems), e.g. radio transmitters , industrial or medical RF generators for heating, drying, hardening, welding, cutting etc.

All conductive parts located in the radiation field function as receiving aerials /antennas.

If the field is powerful enough and if the receiving aerial is sufficiently large (physical dimensions ), these conductive parts can cause ignition in explosive atmospheres. The received radio-frequency power can, for example, make thin wires glow or generate sparks

during the contact or interruption of conductive parts. The energy picked up by the receiving aerial, which can lead to ignition, depends mainly on the distance between the transmitter and the receiving aerial as well as on the dimensions of the receiving aerial at any particular wavelength and Radio Frequency power.  (EN 1127-2007)

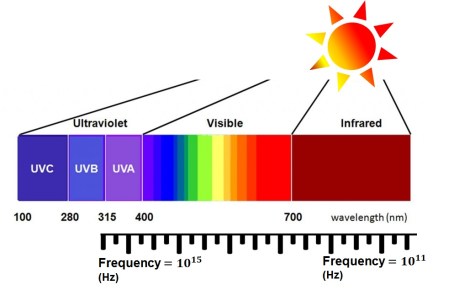

9 )     Electromagnetic wavesfrequency-range

spectrum

fire-from-spectrum


10)     Ionizing radiation

Ionization is the process by which an atom or a molecule acquires a negative or positive charge by gaining or losing electrons to form ions, often in conjunction with other chemical changes

Ionizing radiation is any type of particle or electromagnetic wave that carries enough energy to ionize or remove electrons from an atom. There are two types of electromagnetic waves that can ionize atoms:

X-rays and gamma-rays, and sometimes they have the same energy.

Ionizing radiation generated, for example, by X-ray tubes and radioactive substances can ignite explosive atmospheres (especially explosive atmospheres with dust particles) as a result of energy absorption.


11)     Ultrasound

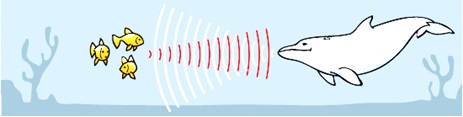

ultrasoundultrasound1

Ultrasound is sound waves with frequencies higher than the upper audible limit of human hearing. (The range of human hearing is generally considered to be 20 Hz to 20 kHz)

The most common & familiar uses are as follows:

  1. Underwater Range Finding known as SONAR (SOund Navigation And Ranging)
  2. Ultrasonography (Medical Ultrasound)

untrasound-and-ex

Ultrasonic sound waves , generated by  electroacoustic transducers , can transfer the inherent energy as heat to liquid or solid substances , which in extreme cases can overheat and ignite .


12)     Adiabatic compression and shock waves

First …..Some definitions

Adiabatic Process

In thermodynamics, an adiabatic process is one that occurs without transfer of heat or matter between a thermodynamic system and its surroundings. In an adiabatic process, energy is transferred only as work. (Wikipedia)

Adiabatic Compression

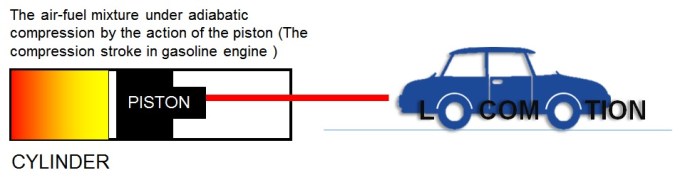

A good example of adiabatic compression is the gasoline engine ‘s compression stroke during operation.

expeltec-adiabatic-compression-cylinder


13)     Exothermic reactions , including self-ignition of the powders

DEFINITION

expeltec-exothermic-reaction

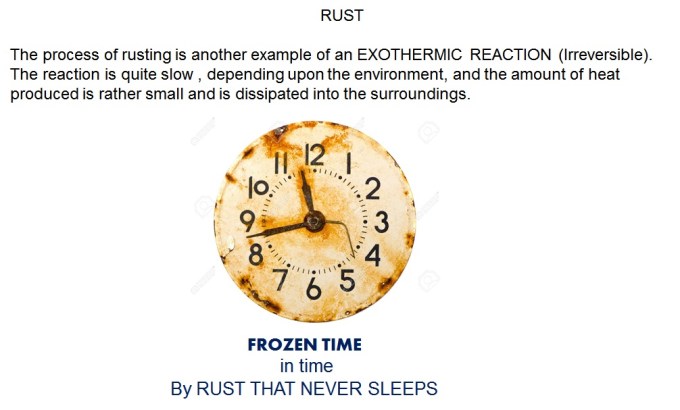

Example

expeltec-rust-that-never-sleeps


Recalling the list of most common IGNITION SOURCES

  • Electrical Arcing and Sparking
  • Mechanical Sparks
  • Welding
  • Naked Flames
  • Hot Gases
  • Incandescent Materials
  • Hot Surfaces
  • Electromagnetic Radiation
  • Ionizing Radiation
  • HF Radiation
  • Lasers
  • Exothermic Chemical Reactions
  • Ultrasonics
  • Lightning
  • Static Electricity
  • Adiabatic Compressions
  • Cathodic Protection Currents

(source of this list : IECEx)


ISO 80079-36 has elaborated on the definition of   IGNITION SOURCE  in the following way:

  1. EQUIPMENT RELATED IGNITION SOURCE
  2. POTENTIAL IGNITION SOURCE
  3. EFFECTIVE IGNITION SOURCE

  1. Possible ignition sources which could be caused by the equipment under consideration regardless of its ignition capability.
  2. Equipment related ignition source which has the capability to ignite an EXPLOSIVE ATMOSPHERE
  3. Potential ignition source which is able to ignite an EXPLOSIVE ATMOSPHERE when consideration is taken of when it occurs  (….in normal operation, expected malfunction or rare malfunction)

80079-36-Ignition Sources Definetion Slide


fire_triangle_jpg

👍
