Into the world of IEC 60079-14

The World of IEC 60079-14

expeltec world of IEC 60079-14


IEC 60079-14 is one of the most important International Standard ,specifying the requirements for :-

The Design

The Selection & The Physical Set-up

The Initial Inspection

of Electrical Installation in  or associated with Explosive Atmospheres.

Let us  walk-through the informative world of IEC 60079-14 . Each Section is represented by a graphic slide, with minimum narration .


iec60079-14-slide1

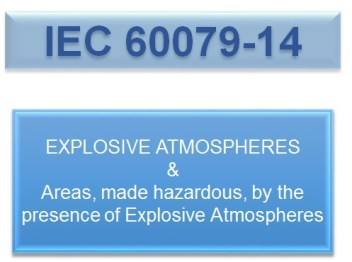

Prevention should be the basic goal.

This is how we are introduced to IEC 60079-14. The prevention of explosion risk from the flammable materials should be sought first , by employing three important principles.

1. SUBSTITUTION

2. CONTROLLING

3. MITIGATION


iec60079-14-slide2


The process of mitigation does not eliminate the risks of explosion completely. The basic idea is to suppress or cushion the effects of the explosion. Like an air-bag which does not prevent a car accident but cushions the effects of one and prevent the driver from probable injuries .


iec60079-14-slide3

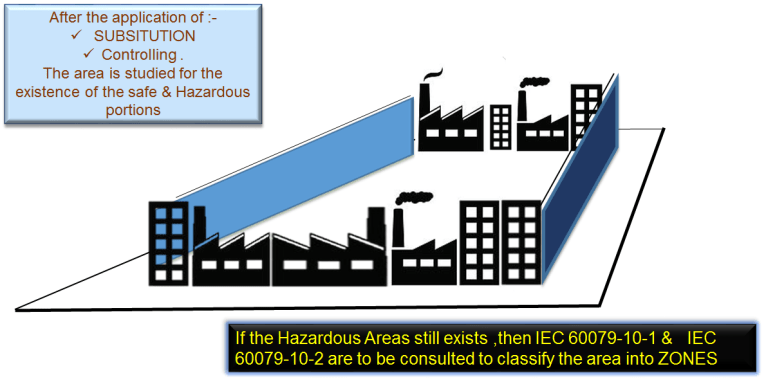

The process of Classification of the  Hazardous Area into ZONES is governed by IEC Standard 60079-10  (IEC 60079-10-1 Explosive Gas Atmospheres  & IEC 60079-10-2 Combustible Dust Atmospheres )


iec60079-14-slide4

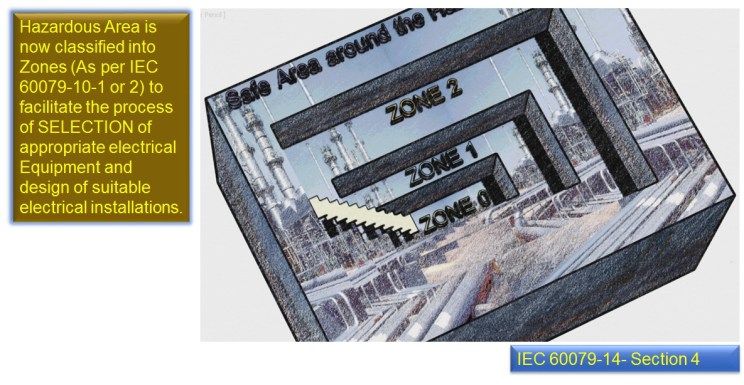

The classification process is an important step leading to the structured process of SELECTION OF EQUIPMENT


iec60079-14-slide5

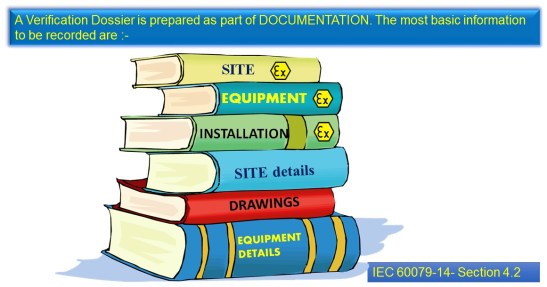

At this point (Section 4 ) IEC 60079-14 reminds the users to maintain a proper & structured documentation system , in multiple copies, with as much information as possible .

iec60079-14-slide6

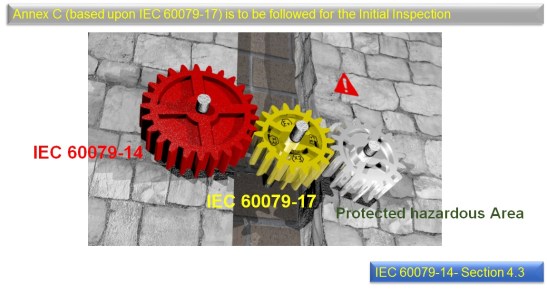

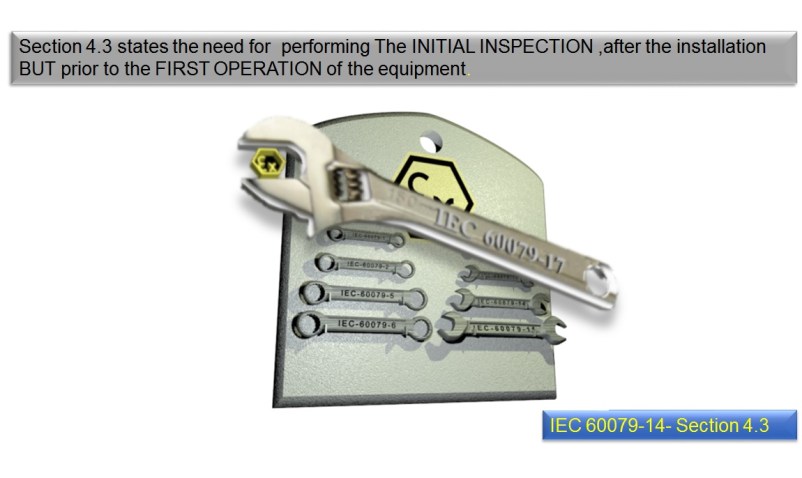

An important part of safety procedure is THE INITIAL INSPECTION.  IEC 60079-14 reminds the users to carry out the inspection .


iec60079-14-slide7iec60079-14-slide20





iec60079-14-slide8



iec60079-14-slide9


Now , its time to enter SECTION 5 -SELECTION OF EQUIPMENT

Its the core section of IEC60079-14 with a complete road-map for the selection of electrical equipment

Section 5


SELECTION OF EQUIPMENT


Ex selection process


…………..Cont
